Correlative Microscopy Techniques

The modular design of the WITec microscope systems allows to combine various imaging techniques such as Raman imaging, fluorescence, luminescence, atomic force microscopy (AFM), near-field microscopy (SNOM or NSOM) and scanning electron microscopy in one single instrument without compromising the analyzing and imaging quality.

The integrated WITec software interface enables user-friendly measurement control, quick and easy correlation of the results and image overlay.

WITec Correlative Raman Fluorescence Cell Biology
Correlative Raman-fluorescence microscopy on a biological cell. Green: GFP fluorescence; yellow, pink and white: Raman signal of nucleus, nucleoli and lipids, respectively.

Raman-SEM (RISE)

The Raman-SEM (RISE) combination is a unique correlative microscopy technique provided by WITec. Structures in the nm-range detected by Scanning Electron Microscopy (SEM) can be correlated to chemical Raman imaging from the same sample area.

More information about WITec's RISE Microscope

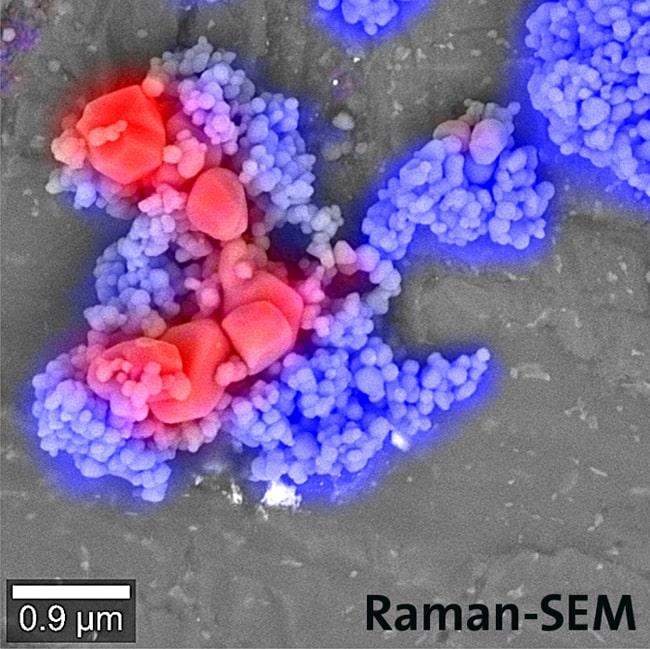

WITec Correlative Raman SEM TiO2
Correlative Raman-SEM (RISE) image of TiO2 particles. The Raman image is overlaid on the SEM image. Different modifications of TiO2 were analyzed by Raman microscopy (blue: anatase, red: rutile).

Raman-AFM

By combining confocal Raman imaging with AFM, the chemical composition of the sample can be linked with the surface characteristics. These two complementary techniques are available in combined Raman-AFM WITec microscopes for flexible and comprehensive sample characterization.

More information about WITec's Raman-AFM Microscope alpha300 RA

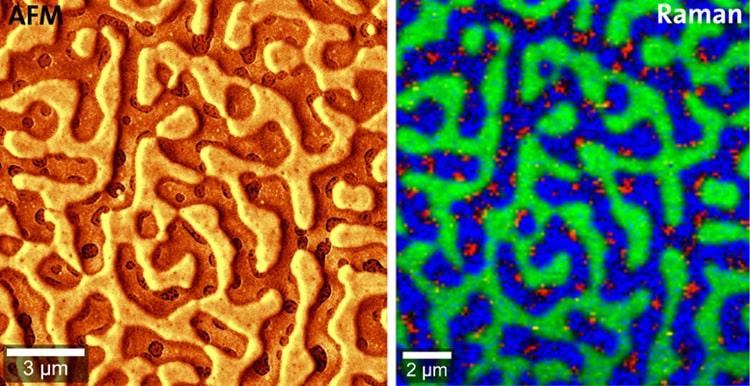

WITec Correlative Raman AFM Polymer Blend
Correlative Raman-AFM image of a polymer blend. Left: Topographic AFM image. Right: Raman image. Red, blue and green: different polymers of the blend.

Raman-SNOM

Combining Raman characterization with SNOM for optical imaging beyond the diffraction limit provides informative results for even challenging experimental requirement.

More information about WITec's Raman-SNOM Microscope alpha300 RS

WITec Correlative Raman AFM SNOM Photoluminescence WS2
Correlative AFM-Raman-SNOM-Photoluminescence microscopy of CVD-grown WS2 crystals.

Raman-Profilometry

One-pass topographic Raman Imaging (TrueSurface Microscopy) for operations on rough or inclined samples.

More information about WITec's Profilometry Microscopy TrueSurface

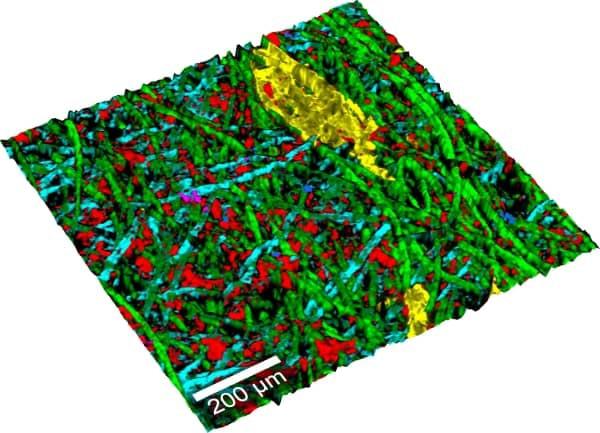

WITec TrueSurface Paper Surface Topography Chemistry
Correlative Raman-Profilometry microscopy of cellulose fibers.
